Fiber Optic Light Engine & 0.75 mm Fiber Optic Cable
Professional components for fiber optic star ceiling installations: a dual-output color-changing LED light engine with remote and app control, plus 0.75 mm PMMA fiber optic supplied in a 2700-meter roll. Suitable for residential, hospitality and commercial decorative lighting projects.
PIONER GROUP supplies professional components for fiber optic ceiling and decorative lighting systems in Dubai and across the UAE.
Our range includes a powerful LED fiber optic light engine with two fiber outputs and 0.75 mm PMMA fiber optic cable supplied in a 2700-meter roll.
These components can be used together to create high-density star ceilings, galaxy ceilings, decorative fiber optic installations and architectural lighting features.
The system is suitable for villas, bedrooms, home cinemas, gaming rooms, hotels, restaurants, spas, majlis interiors and other premium spaces.
The LED light engine is the main illumination source in a fiber optic lighting system.
Instead of installing an LED at every individual star point, hundreds or thousands of optical fibers are collected into bundles and connected to the light engine.
The LEDs inside the light engine illuminate the ends of these fibers, transmitting light through the fiber to the visible points in the ceiling.
The unit shown here features two separate fiber optic output ports, allowing large quantities of fibers to be connected to one light engine.
This makes it particularly suitable for large or high-density star ceiling installations.
According to the supplied manufacturer instruction:
Supply voltage: 220–240 V AC
Power frequency: 50–60 Hz
Maximum power: 2 × 45 W
Body dimensions: approximately 280 × 195 × 76 mm, excluding connectors
Fiber outputs: 2
Control: remote control and mobile application
Installation: indoor use
The aluminum housing incorporates substantial cooling fins to help dissipate heat during operation.
The light engine supports multiple colors and dynamic lighting effects.
Depending on the selected program, users can create different atmospheres for the same fiber optic ceiling.
Available control options shown in the supplied instructions include colors such as:
red, green, blue, yellow, sky blue, purple, white and warm white.
Dynamic programs include effects such as fade, breathing, jump and twinkle-style sequences.
Brightness and program speed can also be adjusted.
This makes the system suitable both for subtle luxury star ceilings and more dynamic RGB-style decorative installations.
Remote Control
A handheld remote is supplied for convenient operation of the light engine.
The remote allows users to select colors, change effects, adjust brightness and control dynamic modes without accessing the light engine directly.
This is particularly useful when the light engine is installed above a ceiling or inside a dedicated technical access area.
Mobile App Control
The light engine can also be controlled using a compatible mobile application.
App-based control allows the user to select lighting colors and programs directly from a smartphone.
For residential projects, this provides a convenient way to change the atmosphere of a bedroom, cinema or entertainment room without requiring a dedicated wall controller.
Two Fiber Optic Outputs
A significant advantage of this model is its dual fiber optic output design.
Two separate fiber bundles can be connected to the same light engine.
This is useful for installations requiring a high number of individual fibers.
For example, one output can supply one section of a large star ceiling while the second output supplies another section.
It can also make fiber routing easier in large ceiling installations.

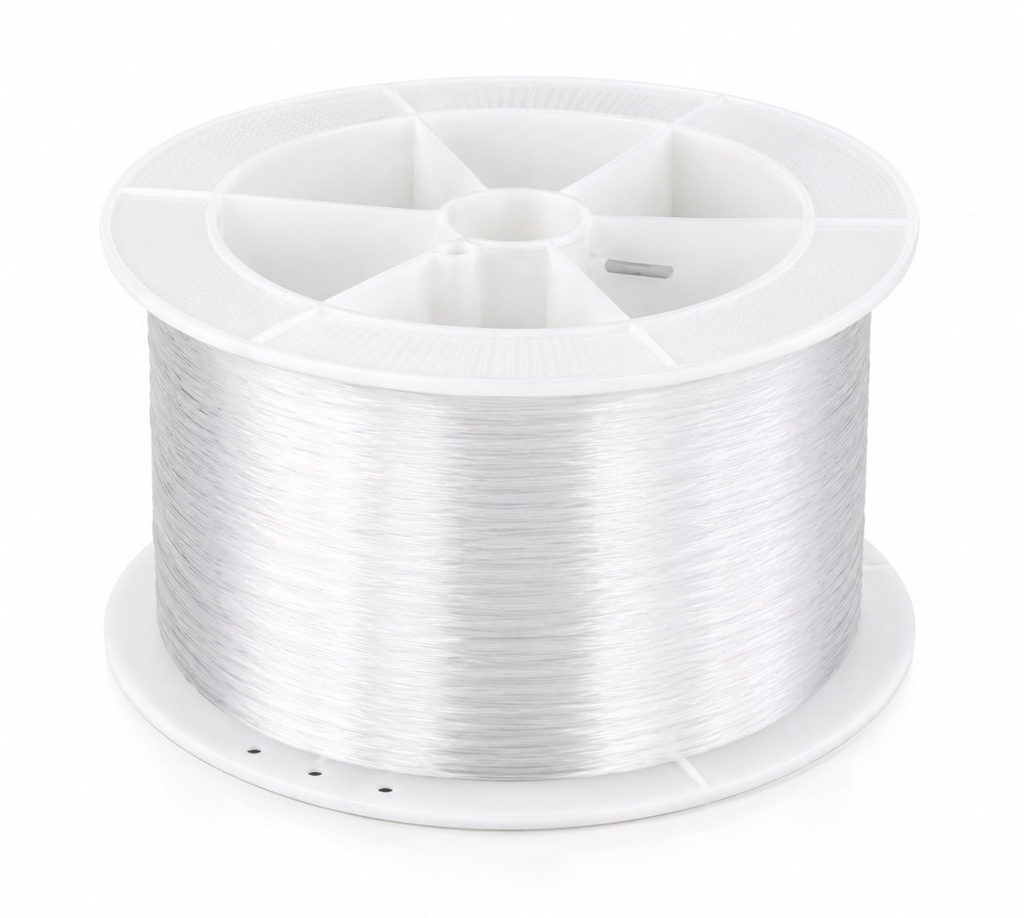

We also supply 0.75 mm diameter fiber optic cable in 2700-meter rolls.
The 0.75 mm size is particularly popular for star ceiling applications because it creates small, refined points of light.
When hundreds or thousands of these fibers are installed through a ceiling membrane, the result resembles a natural field of distant stars.
Fiber Specification
Product: PMMA Fiber Optic
Fiber diameter: 0.75 mm
Roll length: 2700 meters
Application: decorative fiber optic lighting
Typical use: star ceilings and galaxy ceilings
Light transmission: passive – fiber carries light from the light engine
Electrical current in fiber: none
Because the fiber itself carries light rather than electrical current, the individual star points do not require separate electrical connections.
Why Use 0.75 mm Fiber for Star Ceilings?
A 0.75 mm fiber creates a relatively small point of light.
This makes it particularly useful when creating a high-density star field.
Using many thin fibers creates a more refined result than using only a small number of large fibers.
For more realistic star ceilings, different fiber diameters can also be combined.
For example, 0.75 mm fibers can form the majority of the stars, while occasional larger fibers can be used to create brighter stars.
The exact design depends on the required effect.
How Many Stars Can Be Made From a 2700 m Roll?
The answer depends primarily on the average fiber length used for each star.
For example:
If the average fiber length is 3 meters, a 2700 m roll theoretically provides approximately 900 individual fiber runs.
At an average length of 4 meters, approximately 675 fiber runs are available.
At an average length of 5 meters, approximately 540 fiber runs are available.
Actual usable quantities will be slightly lower because additional fiber should normally be allowed for routing, trimming and installation.
This makes a 2700-meter roll suitable for substantial residential and commercial star ceiling projects.
Applications
The combination of the LED light engine and 0.75 mm fiber optic can be used for many decorative lighting applications.
Typical installations include:
Fiber optic star ceilings in bedrooms and villas.

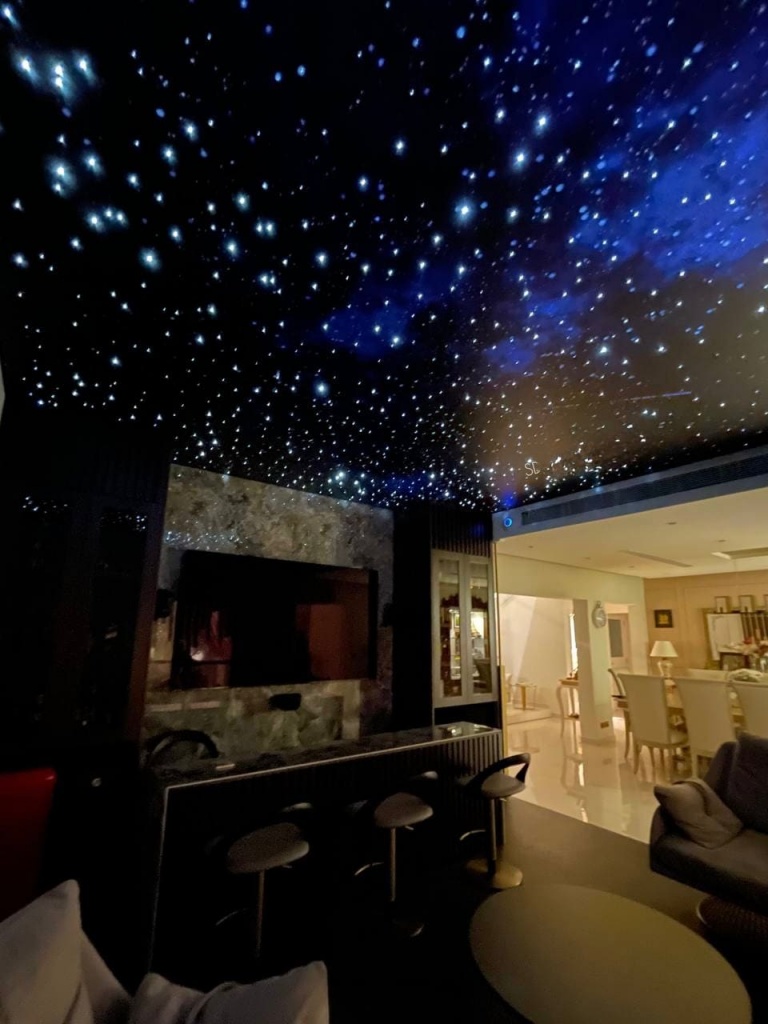

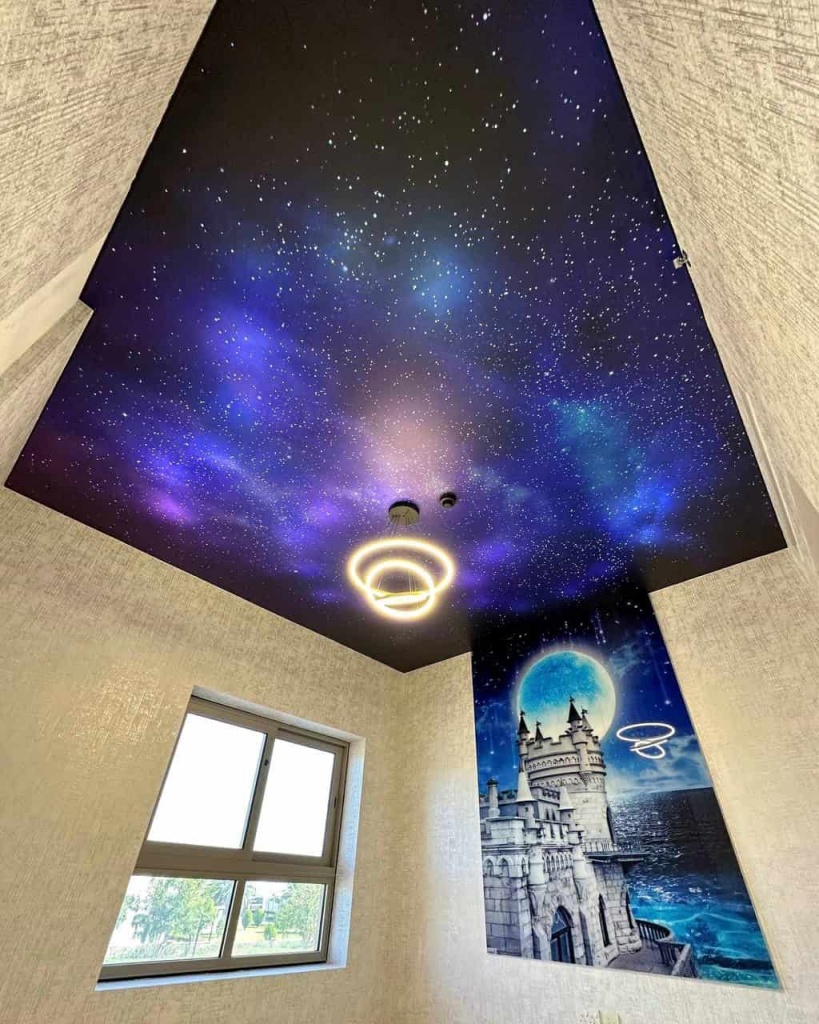

Galaxy ceilings with hundreds or thousands of stars.

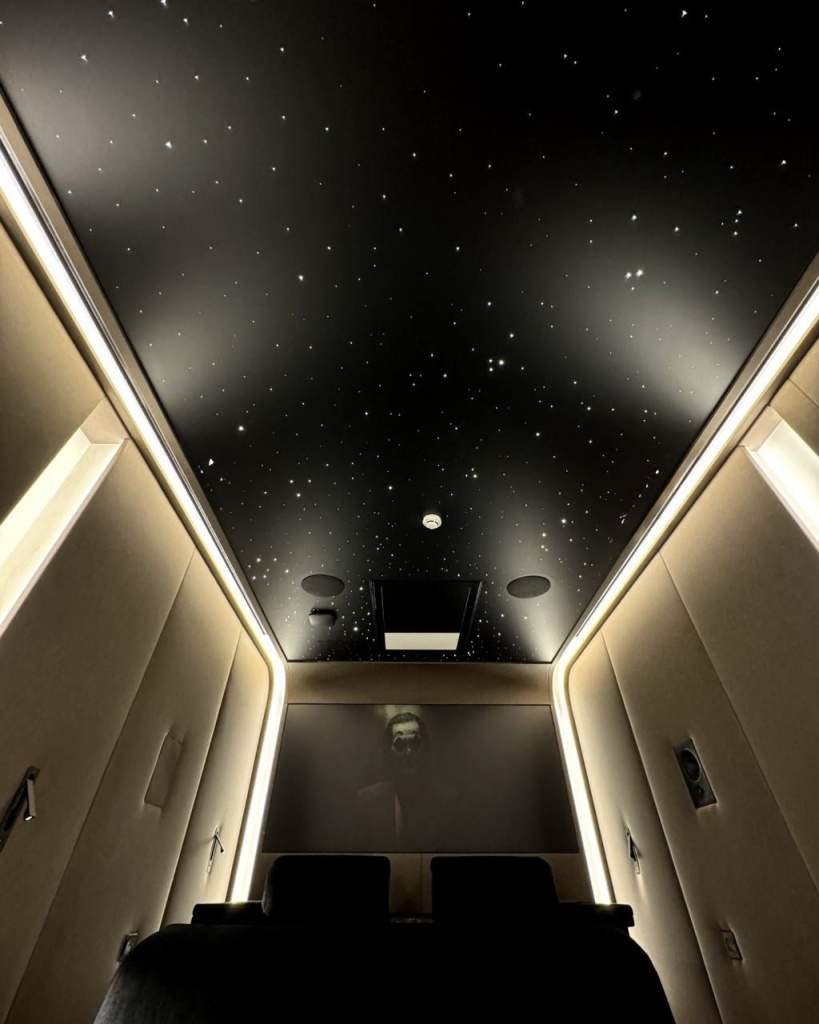

Home cinema ceilings using black stretch membrane.
White star ceilings where fibers remain almost invisible when switched off.
Gaming rooms and entertainment spaces with color-changing effects.
Hotels, spas and hospitality interiors requiring decorative ambient lighting.
Restaurants and lounges with custom fiber optic patterns.
Commercial feature ceilings and architectural installations.
A complete fiber optic star ceiling normally consists of several components.
The light engine provides the illumination.
PMMA optical fibers carry that light from the engine to individual points across the ceiling.
The ceiling surface can be a black, white, matt, satin or glossy stretch membrane depending on the required design.
Each fiber is positioned individually to create the star pattern.
The result can range from a simple random star field to a very dense galaxy-style ceiling.
The same fiber optic system can be used with different ceiling finishes.
A black stretch ceiling creates the strongest contrast and gives the most dramatic night-sky appearance.

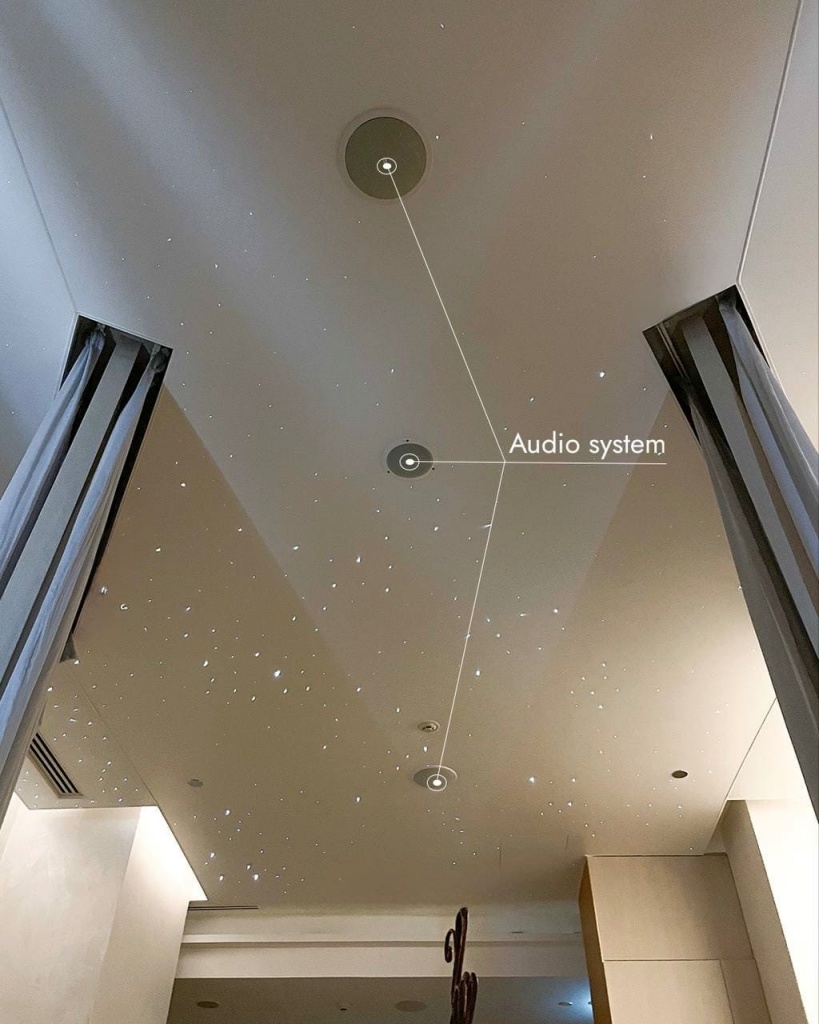

A white stretch ceiling provides a much more subtle result. During the day the ceiling remains bright and minimal, while the stars appear when the fiber optic light engine is switched on.
Both options can be created using 0.75 mm fiber.
Static or Dynamic Star Effects
The appearance of a fiber optic ceiling depends significantly on the light engine.
A static white light engine creates a classic star field.
A color-changing engine allows different colors to be selected.
Dynamic programs can produce gradual color transitions and changing effects.
This makes the same installation suitable for both everyday ambient lighting and more dramatic decorative scenes.
Installation Requirements
The light engine should be installed in a dry and adequately ventilated location.
The manufacturer’s instructions specifically indicate that the unit should not be installed in rain or wet areas and requires appropriate airflow around the housing.
Access should also be provided so the light engine can be serviced if necessary.
When planning a stretch ceiling installation, the location of the light engine should therefore be coordinated before the membrane is installed.
Typical Installation Process
First, the location of the light engine and fiber routes is determined.
The optical fibers are then cut to the required lengths and routed across the ceiling area.
Individual fibers are distributed according to the required star pattern.
The fibers are passed through the ceiling membrane or relevant ceiling surface.
The opposite ends are collected into bundles and connected to the light engine.
After installation, the visible fiber ends are trimmed to create the final star effect.
Suitable for Professional Installers and Contractors
These products are suitable not only for individual residential installations but also for professional ceiling contractors, lighting contractors, interior fit-out companies and MEP contractors.
The 2700-meter bulk roll is especially practical for companies completing multiple projects or larger high-density fiber optic ceilings.
PIONER GROUP can supply individual components or assist with complete fiber optic ceiling systems.
Product Name: Dual Output LED Fiber Optic Light Engine
Short Description:
High-power dual-output LED light engine for fiber optic star ceilings and decorative lighting installations. Features color-changing lighting, dynamic programs, remote control and mobile app control.
Main Specifications:
220–240 V AC
50–60 Hz
Max. 2 × 45 W
2 fiber optic outputs
Remote control
Mobile app control
Multiple colors
Dynamic lighting programs
Body size approx. 280 × 195 × 76 mm excluding connectors
Product Name: PMMA Fiber Optic Cable 0.75 mm – 2700 m Roll
Short Description:
0.75 mm PMMA fiber optic cable supplied in a large 2700-meter roll for professional star ceiling, galaxy ceiling and decorative fiber optic lighting installations.
Specifications:
Diameter: 0.75 mm
Roll length: 2700 m
Material: PMMA optical fiber
Application: decorative lighting / star ceilings
Suitable for high-density fiber optic installations
FAQ
What is a fiber optic light engine?
A fiber optic light engine contains the LEDs and electronics that generate the light. Bundles of optical fibers are connected to the engine and transmit that light to hundreds of individual points.
Does electricity run through the fiber optic cable?
No. The fiber carries light rather than electrical current.
Is 0.75 mm fiber suitable for star ceilings?
Yes. 0.75 mm is particularly useful for creating small star points and high-density star fields.
How long is the fiber optic roll?
The roll contains 2700 meters of 0.75 mm fiber optic.
Can the light engine change colors?
Yes. The supplied control system provides multiple colors and dynamic lighting programs.
Can I control it from my phone?
Yes. The light engine supports control through a compatible mobile application as well as the supplied remote control.
How many outputs does the light engine have?
This model has two fiber optic output ports.
Can these products be used with stretch ceilings?
Yes. They are especially suitable for fiber optic star ceilings made using black, white, matt, satin or glossy stretch ceiling membranes.
Order Fiber Optic Components for Your Star Ceiling Project
PIONER GROUP supplies professional fiber optic light engines and PMMA optical fiber for residential, hospitality, commercial, and architectural lighting projects across Dubai and the UAE.
- ✅ Dual-output LED fiber optic light engine
- ✅ Maximum power 2 × 45 W
- ✅ Remote and mobile app control
- ✅ Multiple colors and dynamic lighting effects
- ✅ 0.75 mm PMMA fiber optic
- ✅ 2700-meter bulk rolls available
- ✅ Suitable for star and galaxy ceilings
- ✅ Supply for contractors and professional installers
Phone: +971 56 896 8934
Email: info@pioner-group.com
Send us your required fiber quantity, ceiling dimensions, fiber density, project drawings, or PDF/DWG files. Our team can recommend the appropriate fiber quantity and light engine configuration for your project.
