Fiber Optic Ceiling in Dubai – Star Ceiling Design & Installation
Transform your interior with a custom fiber optic ceiling in Dubai. Hundreds or thousands of illuminated fiber optic points can be integrated into a stretch ceiling to create a realistic starry-sky effect for villas, bedrooms, home cinemas, gaming rooms and luxury interiors.
A fiber optic ceiling transforms an ordinary ceiling into an illuminated starry sky using hundreds or even thousands of tiny points of light.
Fiber optic strands are integrated into the ceiling surface, creating individual stars that can vary in size, brightness and color. When combined with a stretch ceiling, the result is a clean architectural finish during the day and an impressive star effect when the fiber optic lighting is switched on.
PIONER GROUP provides fiber optic ceiling design, supply and installation in Dubai and across the UAE for luxury villas, bedrooms, home cinemas, gaming rooms, majlis interiors, hotels, spas and other residential and commercial projects.
Our systems can be designed with white stars, RGB/RGBW color effects, different fiber diameters, adjustable brightness and dynamic twinkle effects.
What Is a Fiber Optic Ceiling?
A fiber optic ceiling is a decorative ceiling system where thin optical fibers transmit light from a central light source to hundreds of individual points distributed across the ceiling.
Unlike conventional spotlights, electrical power is not supplied to every individual star. The fibers simply carry light generated by a separate fiber optic light engine.
A typical system consists of:
* fiber optic strands;
* LED, RGB or RGBW light engine;
* stretch ceiling membrane;
* aluminum ceiling profiles;
* control system;
* dimming or remote control;
* optional twinkle effect;
* optional color-changing functions.
Only the ends of the optical fibers are visible on the finished ceiling.
This makes it possible to create extremely small points of light that closely resemble stars.
How Does a Fiber Optic Star Ceiling Work?
The principle is relatively simple.
Hundreds of fiber optic strands are connected to a light engine installed above the ceiling or in another accessible location.
Light enters one end of each optical fiber and travels through the strand. The opposite end passes through the ceiling membrane and becomes visible as a tiny illuminated point.
By distributing these fibers across the ceiling, we create a fiber optic star ceiling.
The final appearance depends on several factors:
* number of fibers;
* fiber diameter;
* distribution pattern;
* ceiling color;
* light engine;
* brightness;
* color temperature;
* RGB/RGBW effects;
* distance between individual stars.
Professional design is important because randomly installing identical fibers at equal distances usually produces an artificial appearance.
A realistic star ceiling should contain variation.
Different Fiber Sizes Create a More Realistic Sky
One of the most important details in a premium fiber optic ceiling is the use of different fiber diameters.
Small fibers create subtle background stars, while larger fibers create brighter points.
By combining different diameters, the ceiling gains visual depth.
Instead of hundreds of identical dots, the viewer sees a more natural composition with small stars, medium stars and brighter focal points.
Star distribution can also be varied.
Some areas can contain dense clusters while others remain relatively open, creating a more realistic night-sky appearance.
Fiber Optic Ceiling with Stretch Ceiling
A stretch ceiling with fiber optics is one of the most practical ways to create a star ceiling.
The stretch membrane provides a perfectly smooth background while allowing hundreds of optical fibers to be integrated into the surface.
Different membrane finishes can be used, including:
* white matt;
* white satin;
* black matt;
* black satin;
* black glossy;
* printed membrane;
* translucent membrane.
The choice depends primarily on the desired appearance of the room when the stars are switched off.

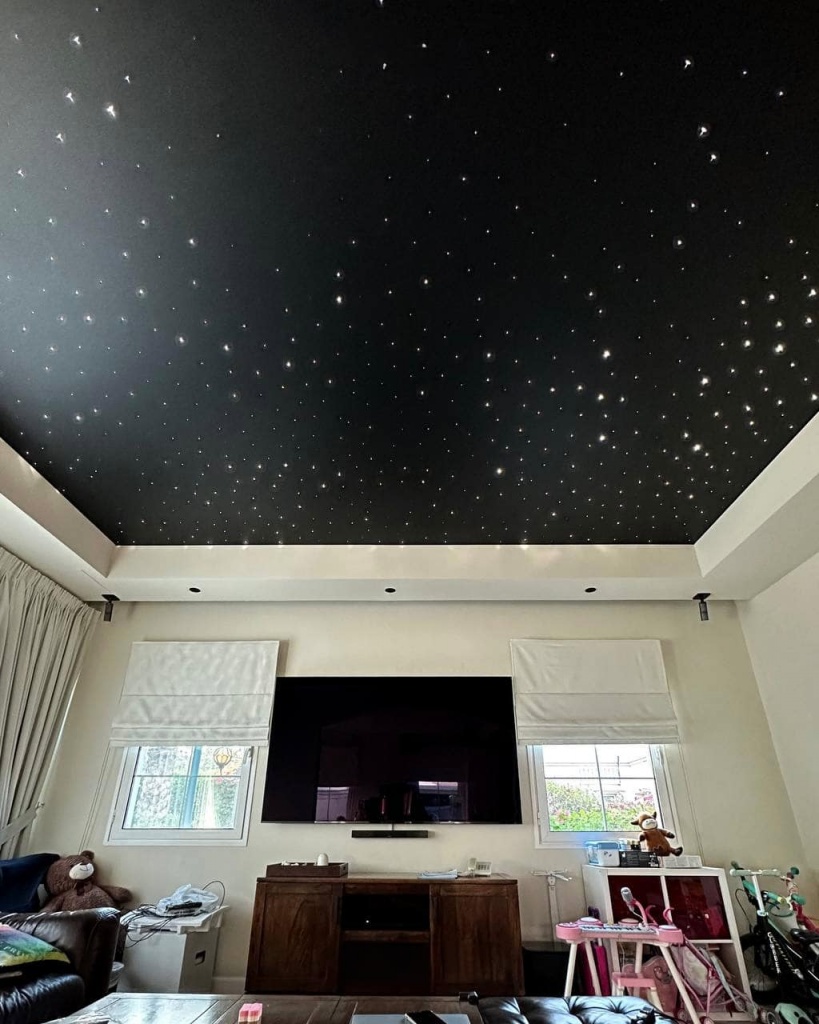

Black Fiber Optic Ceiling
A black fiber optic ceiling creates the strongest night-sky effect.
Because the background is dark, individual illuminated fibers become much more visible.
The ceiling can almost disappear visually when the room is dark, leaving only hundreds of illuminated stars.
This solution is particularly effective for:
* home cinemas;
* gaming rooms;
* private lounges;
* entertainment rooms;
* bars;
* clubs;
* luxury bedrooms.

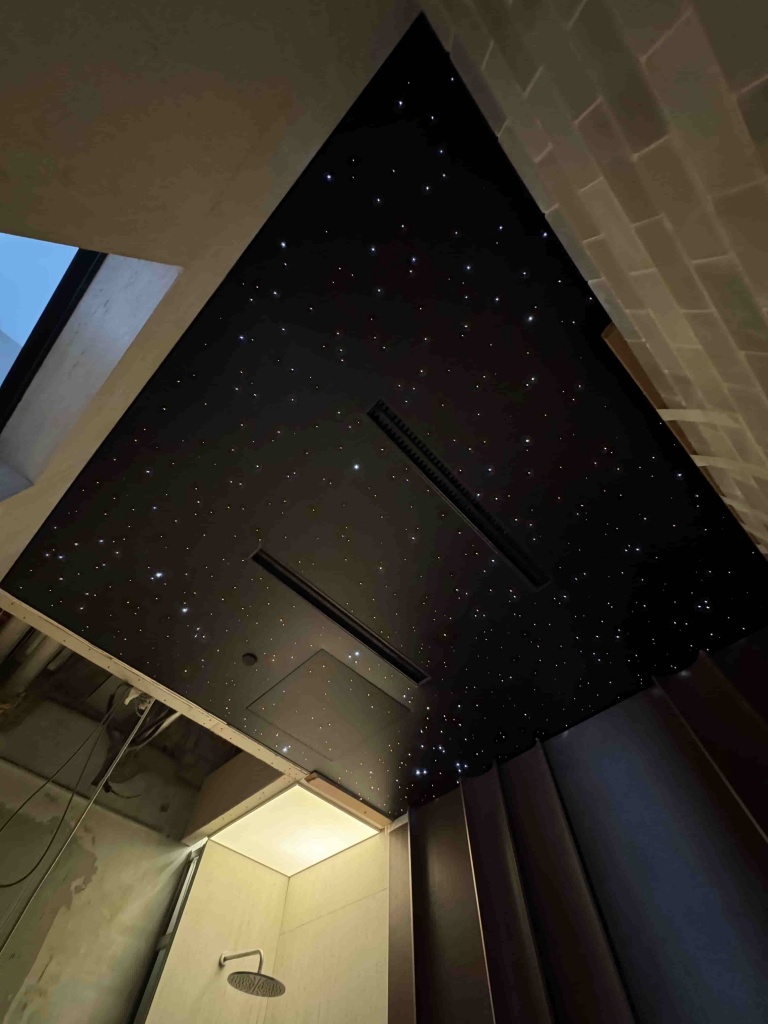

A black glossy stretch ceiling can additionally create reflections, while a matt black membrane produces a deeper and more realistic night-sky appearance.
White Fiber Optic Ceiling
A white fiber optic ceiling offers a completely different effect.
When the fiber optic system is switched off, the ceiling looks like a clean modern white ceiling.
The individual fibers can be extremely discreet.
When the system is switched on, hundreds of small stars appear across the surface.
This is an excellent solution when the client wants the star effect without having a permanently dark ceiling.
White fiber optic ceilings are particularly suitable for:
* master bedrooms;
* children’s bedrooms;
* nurseries;
* luxury villas;
* relaxation rooms;
* spa areas;
* residential interiors.

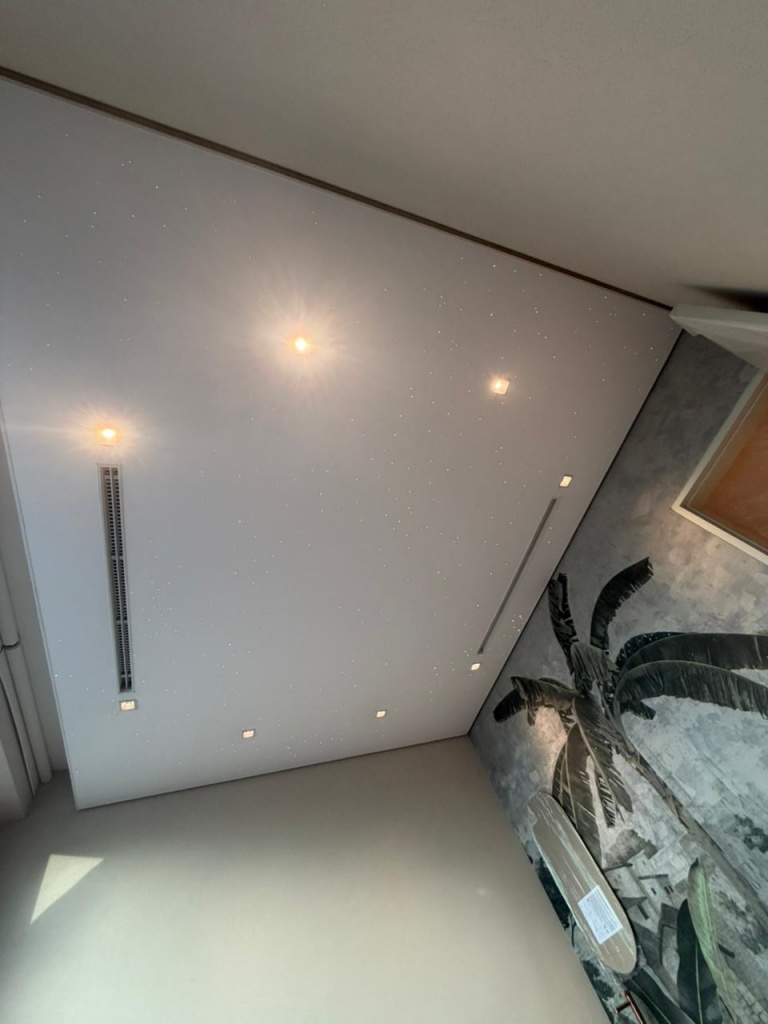

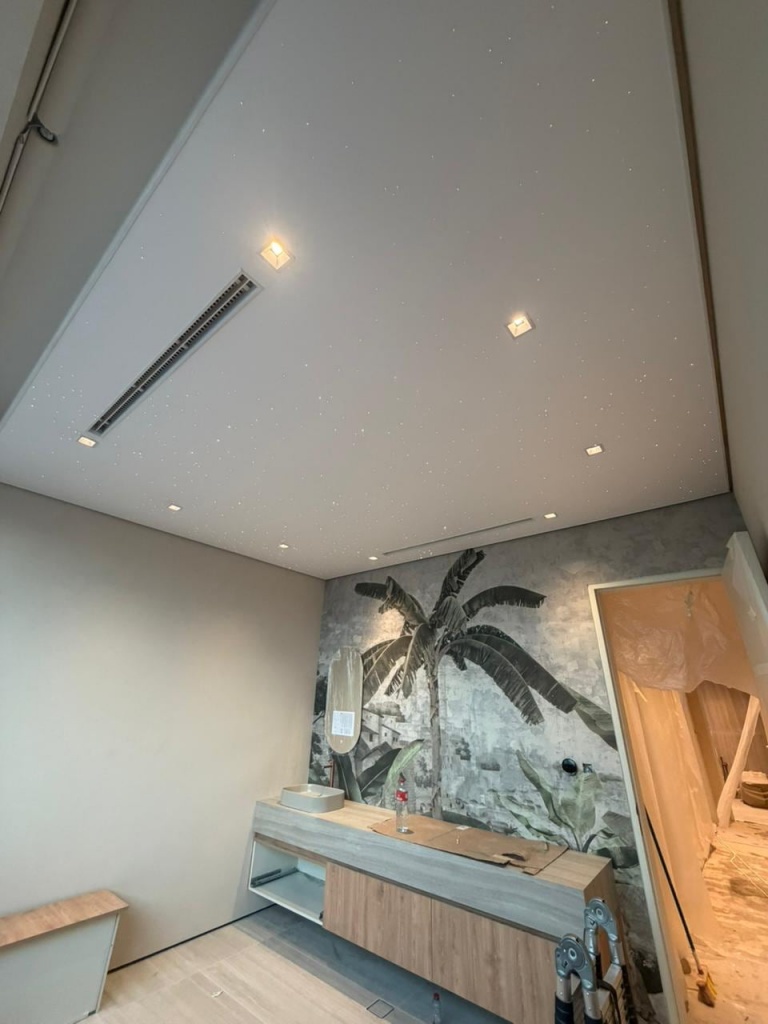

The white fiber optic ceiling shown in these project photos demonstrates how stars can be combined with recessed downlights and linear AC grilles without compromising the clean architectural appearance.
Fiber Optic Ceiling for Bedrooms
Bedrooms are one of the most popular applications for a fiber optic ceiling in Dubai.
The system creates soft decorative illumination that can be used independently from the main room lighting.
For example, the room can have normal architectural lighting during the evening. Before sleeping, the main lights can be switched off while the fiber optic stars remain illuminated.
A bedroom star ceiling can be combined with:
* recessed downlights;
* chandeliers;
* cove lighting;
* linear LED lighting;
* magnetic track lighting;
* reading lights;
* integrated AC grilles.
For luxury villas, the fiber optic system can also be connected to the room’s smart-home control.
Fiber Optic Ceiling for Children’s Rooms
Star ceilings are particularly effective in children’s bedrooms.
A white ceiling can remain visually neutral during the day while creating a completely different atmosphere at night.
The design can include:
* subtle white stars;
* blue stars;
* RGB color effects;
* constellations;
* shooting-star effects;
* different star densities.
The intensity can also be reduced to create soft decorative night lighting.

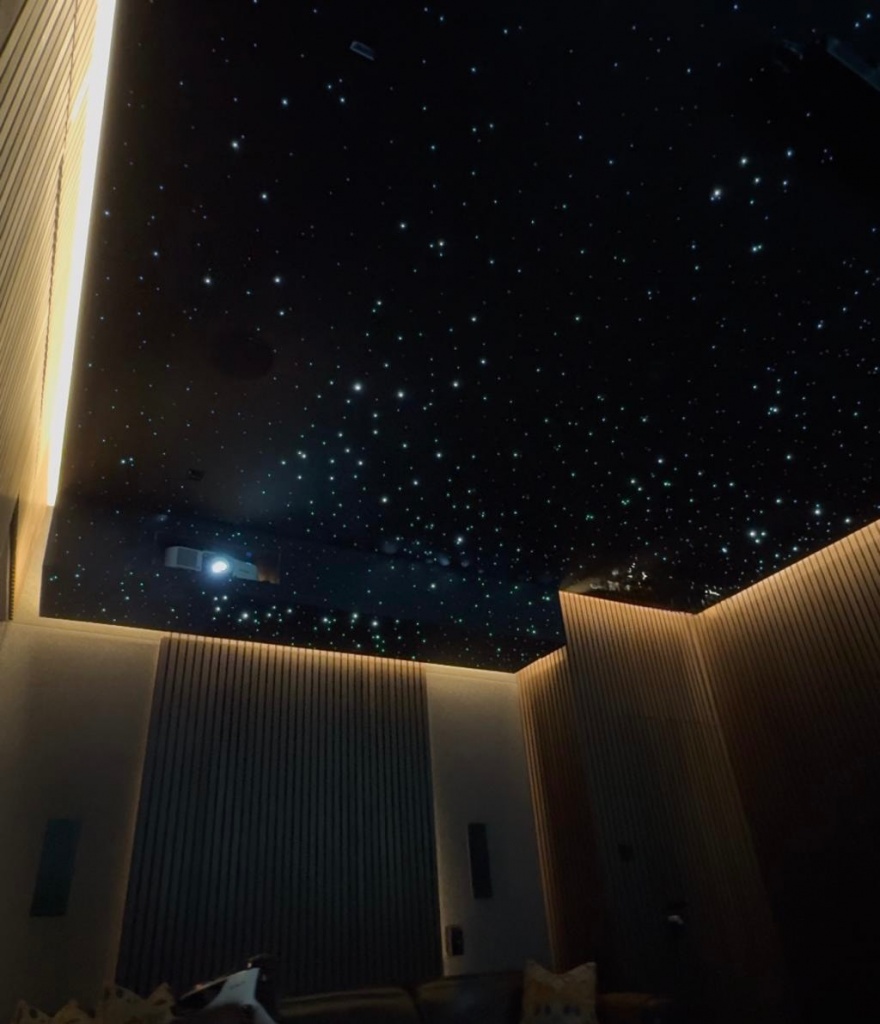

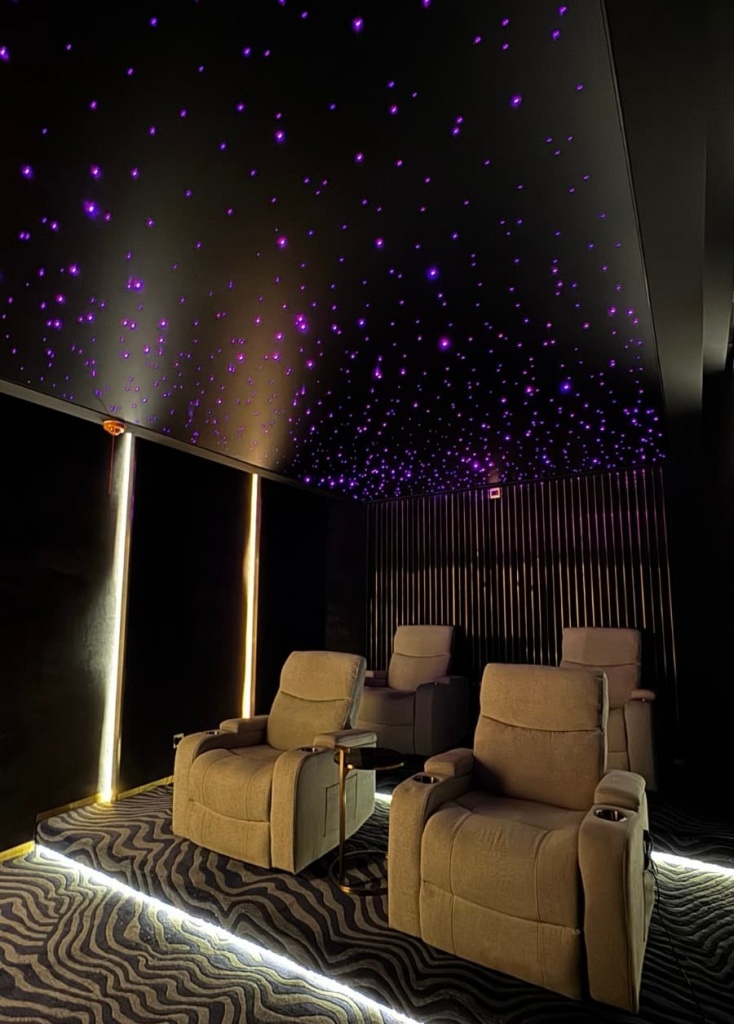

A fiber optic ceiling for a home cinema is one of the classic applications of this technology.
Home cinemas generally benefit from dark ceilings because they reduce unwanted reflections from the screen.
A black stretch ceiling combined with hundreds of fiber optic stars provides both functions.
When the movie starts, the main lighting can be switched off while the star ceiling remains at very low brightness.
The result resembles the ceiling of a premium private cinema.
The system can also be connected to automation so that the stars dim automatically when the movie begins.
Gaming rooms allow for more dramatic lighting effects.
Instead of traditional white stars, an RGB or RGBW fiber optic light engine can create different colors.
Possible effects include:
* blue;
* green;
* purple;
* red;
* warm white;
* cool white;
* gradual color transitions;
* changing colors;
* twinkle effects.

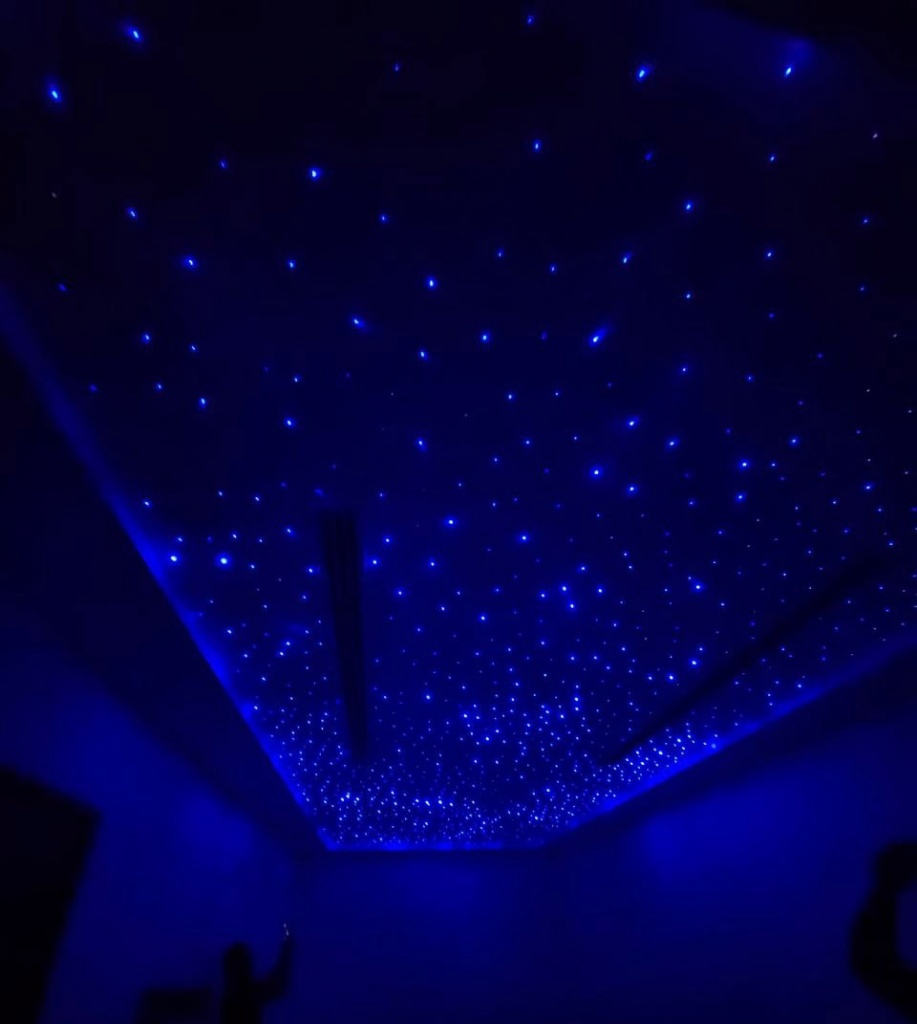

A blue fiber optic ceiling, for example, creates a strong futuristic atmosphere and works particularly well with RGB architectural lighting.
Fiber Optic Ceiling for Luxury Villas in Dubai
Fiber optic ceilings have become an attractive feature for luxury residential projects because they allow designers to create something completely different from a conventional gypsum ceiling.
They can be installed in:
* master bedrooms;
* children’s bedrooms;
* home cinemas;
* gaming rooms;
* majlis rooms;
* living rooms;
* private lounges;
* spa rooms;
* relaxation areas.
For villas in Dubai, the system can be designed together with the complete ceiling package rather than added after construction.
This makes it easier to coordinate fiber optics with lighting, HVAC, sprinklers, speakers and other ceiling services.
Twinkle Fiber Optic Ceiling
Stars in the real night sky do not all appear equally bright.
A twinkle fiber optic ceiling attempts to reproduce this effect by continuously changing the apparent brightness of individual stars.
Depending on the light engine, different modes can be available:
* slow twinkle;
* faster twinkle;
* static stars;
* adjustable brightness;
* color transitions;
* RGB effects;
* white-light mode.
For residential interiors, subtle and relatively slow effects normally create the most elegant result.
RGB and RGBW Fiber Optic Ceiling
Fiber optic systems do not have to be limited to white light.
RGB light engines allow the star field to change color.
An RGBW system adds a dedicated white channel, providing better white light in addition to decorative colors.
This allows one ceiling to operate in several different modes.
For example:
Normal mode: white stars.
Relaxation mode: warm or dimmed stars.
Entertainment mode: blue or colored stars.
Dynamic mode: slowly changing colors.
The exact functionality depends on the selected light engine and control system.
Fiber Optic Constellation Ceiling
The fibers do not necessarily have to be distributed randomly.
A custom fiber optic constellation ceiling can reproduce recognizable star patterns.
Possible designs include:
* constellations;
* zodiac signs;
* Milky Way-inspired patterns;
* star clusters;
* custom graphics;
* random natural star fields.
For particularly large ceilings, a combination of dense and sparse areas can create a much more dramatic sense of depth.
A galaxy ceiling generally uses a higher star density and more complex distribution than a simple star ceiling.
Different fiber sizes can be concentrated in certain areas to create the impression of galaxies or the Milky Way.
The effect can be further enhanced using RGBW lighting.
For a premium installation, the fiber distribution should be designed before the membrane is installed.
Fiber Optic Ceiling with Shooting Stars
More advanced systems can incorporate shooting-star effects.
Instead of a single static point, a sequence of illuminated fibers creates the appearance of a star moving across the ceiling.
This can be used as an occasional decorative effect rather than continuous animation.
Shooting stars are particularly suitable for:
* home cinemas;
* gaming rooms;
* children’s rooms;
* entertainment spaces;
* immersive interiors.
Fiber Optic Ceiling with Integrated Lighting
A star ceiling does not prevent the installation of normal architectural lighting.
The same ceiling can incorporate:
* downlights;
* spotlights;
* chandeliers;
* linear lights;
* magnetic tracks;
* perimeter lighting;
* indirect lighting.
This allows the fiber optics to operate primarily as decorative lighting while conventional fixtures provide the required general illumination.
Integration with Air Conditioning and Other Ceiling Services
Modern Dubai interiors often contain numerous ceiling services.
A professional fiber optic ceiling installation can be coordinated with:
* linear AC grilles;
* supply and return air diffusers;
* smoke detectors;
* sprinklers;
* speakers;
* CCTV cameras;
* access panels;
* emergency lights;
* recessed lighting.
The position of these elements should ideally be coordinated before the fiber distribution is finalized.
This prevents stars from being concentrated around equipment or creating awkward visual patterns.
Fiber Optic Ceiling Control
The control method depends on the selected light engine.
Possible options include:
* standard wall switch;
* remote control;
* Bluetooth;
* smartphone app;
* dimming;
* DMX control;
* DALI integration;
* smart-home integration.
For luxury villas, integration with the main home automation system allows the fiber optic ceiling to become part of lighting scenes.
A single command can, for example, switch off the main lights, dim the perimeter lighting and activate the star ceiling.
Can a Fiber Optic Ceiling Be Dimmable?
Yes.
With a compatible light engine and control system, the brightness of the fiber optic ceiling can be adjusted.
This is particularly useful in bedrooms and home cinemas.
At full brightness the ceiling can create a strong decorative effect, while at low brightness the stars become much more subtle.
Fiber Optic Ceiling Installation Process
Professional fiber optic ceiling installation in Dubai involves several stages.
1. Site Survey
The ceiling dimensions, existing services, ceiling height and installation conditions are checked.
2. Design
The client selects the ceiling finish, approximate star density, fiber colors and required effects.
3. Technical Coordination
Locations of AC grilles, sprinklers, detectors, lights, speakers and access panels are coordinated.
4. Aluminum Profile Installation
The stretch ceiling profile is installed around the perimeter or according to the required architectural shape.
5. Fiber Optic Preparation
Hundreds of fibers are prepared and distributed according to the design.
6. Light Engine Installation
The fiber optic light engine is positioned in an accessible location.
Maintenance access is important because the light engine should remain serviceable after completion.
7. Stretch Ceiling Installation
The selected stretch membrane is installed and tensioned into the aluminum profile.
8. Fiber Installation
Individual fibers are carefully passed through the membrane at their designated positions.
9. Trimming
The exposed ends are trimmed to create clean individual star points.
10. Programming and Testing
Brightness, colors, twinkle functions and controls are tested before handover.
How Many Stars Are Needed for a Fiber Optic Ceiling?
There is no single correct number.
The required quantity depends on:
* ceiling area;
* desired star density;
* interior design;
* budget;
* number of fiber diameters;
* required visual effect.

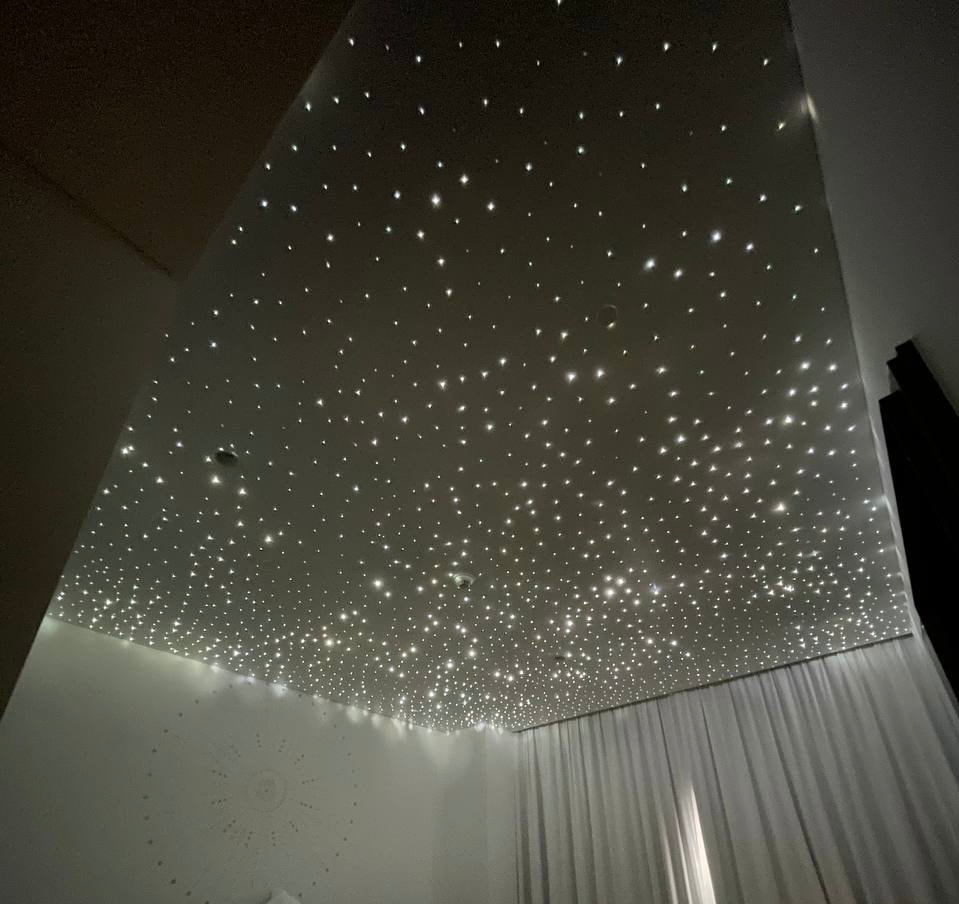

A subtle bedroom ceiling may require a relatively light distribution.
A dramatic galaxy ceiling or home cinema may use a much higher concentration of fibers.
For this reason, the number of fibers should be calculated specifically for each project rather than using the same density everywhere.
Low-Density vs High-Density Star Ceiling
A low-density star ceiling provides a clean and subtle effect with larger spaces between the stars.
This works particularly well in bedrooms and minimalist interiors.

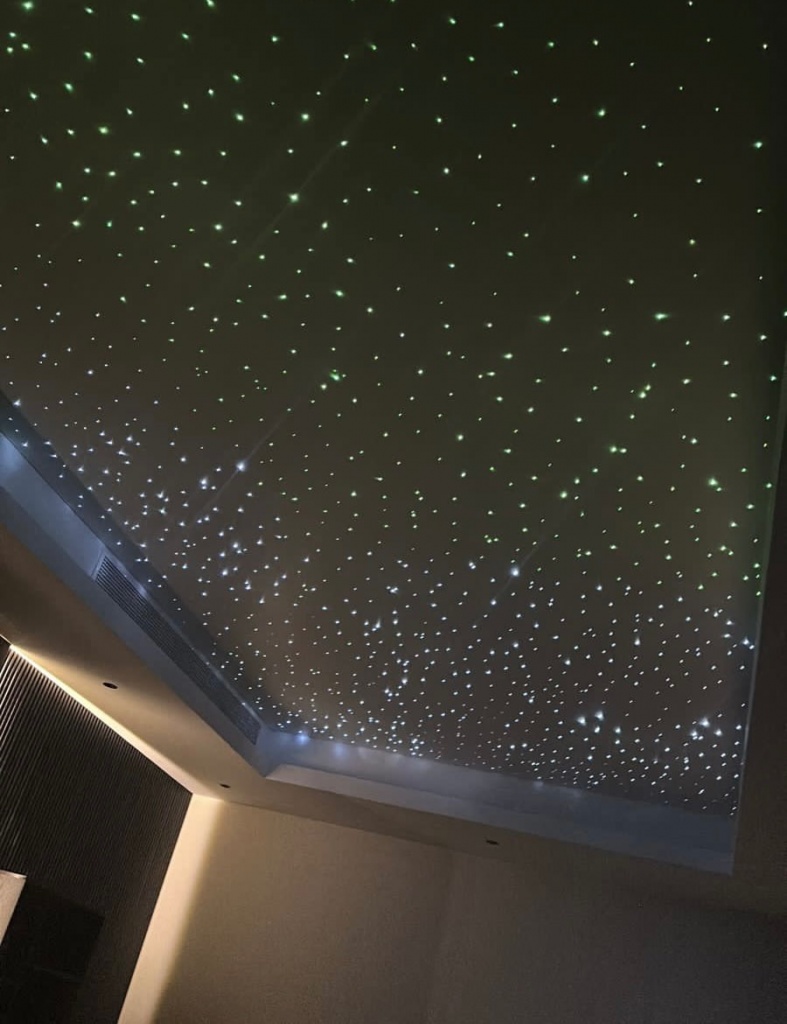

A high-density fiber optic ceiling contains significantly more illuminated points and creates a dramatic night-sky or galaxy appearance.
High-density systems are especially effective for:
* home cinemas;
* gaming rooms;
* large bedrooms;
* entertainment spaces;
* luxury commercial interiors.
Fiber Optic Ceiling Maintenance
One important advantage of fiber optics is that the individual star points contain no conventional electrical lamps.
The main active lighting component is the light engine.
For this reason, the light engine should always be installed where it can be accessed for inspection or replacement.
The stretch ceiling itself can also provide access to services above the membrane when the system is designed correctly.
Fiber Optic Ceiling vs LED Star Ceiling
A fiber optic ceiling and an LED star ceiling are not exactly the same system.
In a fiber optic system, one light engine can illuminate hundreds of optical fibers.
With individual LED stars, electrical LEDs are distributed directly across the ceiling.
Fiber optics are particularly suitable when the goal is to produce a large number of very small, delicate star points.
They also allow the actual electrical light source to remain away from the visible ceiling surface.
Fiber Optic Ceiling vs Galaxy Ceiling
The terms are sometimes used interchangeably, but there can be a difference.
A fiber optic star ceiling generally focuses on creating individual stars.
A galaxy ceiling may combine:
* very high star density;
* different fiber sizes;
* clusters;
* RGB/RGBW colors;
* printed imagery;
* special lighting effects.
Fiber optics can therefore be one of the technologies used to create a galaxy ceiling.
Advantages of a Fiber Optic Ceiling
The main benefits include:
* hundreds or thousands of individual star points;
* very small visible light points;
* custom star density;
* different fiber diameters;
* white or colored lighting;
* RGB/RGBW effects;
* twinkle effects;
* low heat at individual fiber ends;
* remote light source;
* integration with stretch ceilings;
* compatibility with smart-home systems;
* custom shapes and sizes;
* suitable for both white and black ceilings.
Most importantly, the system allows the ceiling itself to become an architectural feature rather than simply a surface containing conventional lighting fixtures.
Fiber Optic Ceiling Shapes
The ceiling does not have to be rectangular.
Stretch ceiling technology allows fiber optic systems to be created in many different forms:
* rectangular;
* square;
* circular;
* oval;
* curved;
* irregular architectural shapes;
* full-room ceilings;
* recessed ceiling features.
The geometry can therefore follow the interior architecture rather than forcing the design into a standard format.
Fiber Optic Ceiling Cost in Dubai
The fiber optic ceiling price in Dubai depends on the specification of each project.
Important cost factors include:
* ceiling area;
* number of fiber optic points;
* fiber density;
* number of different fiber diameters;
* membrane type;
* ceiling shape;
* light engine specification;
* white, RGB or RGBW system;
* twinkle function;
* shooting-star effects;
* control system;
* ceiling height;
* access conditions;
* integration with other ceiling services.
For this reason, fiber optic ceilings are normally quoted individually.
Providing the ceiling dimensions, drawings or site photographs allows us to prepare a much more accurate proposal.
Fiber Optic Ceiling Installation in Dubai and UAE
PIONER GROUP provides fiber optic ceiling installation in Dubai and throughout the UAE.
Projects can include complete supply and installation of:
* aluminum profiles;
* stretch ceiling membrane;
* fiber optic strands;
* light engines;
* lighting controls;
* integrated architectural lighting.
Fiber optic ceiling solutions are available for both new construction and interior renovation projects.
Service areas include:
Dubai • Abu Dhabi • Sharjah • Ajman • Ras Al Khaimah • UAE
Why Professional Installation Matters
A fiber optic ceiling may appear simple after completion, but the final quality depends heavily on planning and installation.
Poorly distributed fibers can produce:
* unnatural patterns;
* visible rows;
* excessive clustering;
* identical star sizes;
* uneven density;
* difficult maintenance access.
A professionally designed ceiling should appear random while actually being carefully planned.
Attention should also be given to the location of the light engine and accessibility for future maintenance.
Fiber Optic Ceiling for Commercial Interiors
Fiber optic systems are not limited to residential projects.
They can also create distinctive ceiling features in:
* hotels;
* restaurants;
* lounges;
* spas;
* reception areas;
* showrooms;
* retail stores;
* entertainment venues.
In commercial spaces, fiber optics can be combined with architectural lighting to create a recognizable visual feature without relying on conventional decorative fixtures.
Why Choose a Custom Fiber Optic Ceiling?
Every room has different dimensions, ceiling services and interior requirements.
For this reason, the best results normally come from a custom-designed system rather than a standardized star pattern.
A bespoke design allows us to determine:
* star quantity;
* star density;
* fiber sizes;
* membrane color;
* ceiling shape;
* lighting effects;
* control method;
* integration with HVAC and lighting.
The result is a fiber optic ceiling designed specifically for the architecture of the space.
Frequently Asked Questions
What is a fiber optic ceiling?
A fiber optic ceiling uses thin optical fibers connected to a remote light engine to create hundreds or thousands of illuminated star points across the ceiling.
Can fiber optic ceilings change color?
Yes. RGB and RGBW light engines can produce different colors and dynamic color-changing effects.
Can fiber optic stars twinkle?
Yes. Compatible light engines can create twinkle effects and variations in brightness.
Can a fiber optic ceiling be dimmed?
Yes. Dimming is possible when the light engine and control system support it.
Can fiber optic ceilings be white?
Yes. Fiber optics can be installed through a white stretch ceiling, creating a clean appearance during the day and visible stars when the system is activated.
Is black or white better for a star ceiling?
Black provides the strongest night-sky effect. White provides a more discreet appearance when the system is switched off. The best choice depends on the interior.
Can fiber optic ceilings be installed in bedrooms?
Yes. Bedrooms are one of the most popular applications for fiber optic star ceilings.
Are fiber optic ceilings suitable for home cinemas?
Yes. Black fiber optic ceilings are especially suitable for home cinemas because the dark surface minimizes reflections while the stars provide decorative ambient lighting.
Can fiber optics be combined with downlights?
Yes. Downlights, chandeliers, linear lighting and other fixtures can be integrated into the same ceiling.
Can AC grilles be installed in a fiber optic ceiling?
Yes. Linear grilles and other HVAC components can be integrated into the stretch ceiling system.
Can I choose the number of stars?
Yes. Star density can be customized according to the ceiling area, desired appearance and budget.
Can different star sizes be created?
Yes. Different fiber diameters can be combined to produce stars with different apparent brightness and size.
Can you create constellations?
Yes. Fiber positions can be designed to reproduce constellations, star clusters or custom patterns.
Can a shooting-star effect be added?
Yes. Certain systems can incorporate sequential lighting effects that simulate shooting stars.
How long does fiber optic ceiling installation take?
Installation time depends on the ceiling size, number of fibers, ceiling geometry and integration with other services. Each project should therefore be assessed individually.
How much does a fiber optic ceiling cost in Dubai?
The price depends on the ceiling area, fiber quantity, star density, light engine, membrane, controls and installation complexity. A quotation can be prepared after receiving dimensions, drawings or site photographs.
Get a Fiber Optic Ceiling Cost Estimate
PIONER GROUP designs and installs custom fiber optic ceilings for luxury villas, bedrooms, home cinemas, gaming rooms, hotels, lounges, and commercial interiors across Dubai and the UAE.
- ✅ White and black fiber optic ceilings
- ✅ Custom star density and different fiber sizes
- ✅ RGB and RGBW color-changing systems
- ✅ Twinkle and dynamic star effects
- ✅ Custom constellations and star patterns
- ✅ Complete design, supply, and installation
Phone: +971 56 896 8934
Email: info@pioner-group.com
Send us your architectural drawings, PDF/DWG files, ceiling dimensions, or inspiration images. Our engineering team will recommend the optimal fiber density, star pattern, membrane finish, light engine, and control system and prepare a detailed quotation for your project.
